The Relations tool can be accessed from the workspace in the following ways:

Button	Key	Menu
	Ctrl+R	Tools-Relations

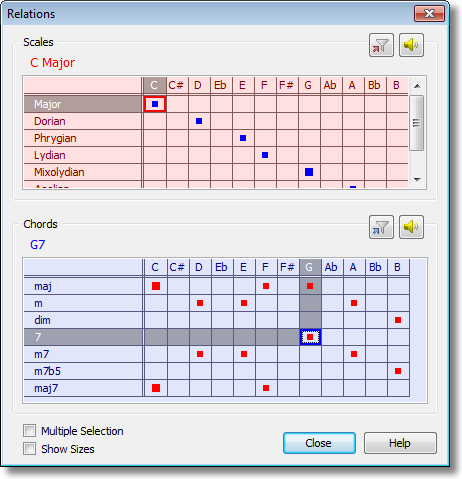

It appears as shown below, and allows you to explore which scales and chords are related to each other.

Controls

Scales

This scale matrix allows you to select a scale, and uses blue dots to indicate which are related to the chord selected in the Chords matrix.  The name of the selected scale is shown above the matrix.

If Allow Multiple Selection is active (see below), you can hold down the Shift key to select multiple scales, and the dots are replaced with numbers to indicate how many of the selected chords each scale is related to.

Send To Filter

Updates the filter in the workspace with the selected scale.

Play Scale

Auditions the sound of the selected scale.  This can be compared to the sound of the selected chord.

Chords

This chord matrix allows you to select a chord, and uses red dots to indicate which are related to the scale selected in the Scales matrix.  The name of the selected chord is shown above the matrix.

If Allow Multiple Selection is active (see below), you can hold down the Shift key to select multiple chords, and the dots are replaced with numbers to indicate how many of the selected scales each chord is related to.

Send To Filter

Updates the filter in the workspace with the selected chord.

Play Chord

Auditions the sound of the selected chord.  This can be compared to the sound of the selected scale.

Allow Multiple Selection

Switches between single-select or multi-select mode.  When ticked, multiple chords and scales can be selected in the matrix controls at the same time by holding down the Shift key.

In this case, the dots in both the Chords and Scales matrix are replaced with numbers to indicate how many of the other's multiple selection each cell is related to.

Show Sizes

Adds a number in square bracket to the headings in both the chord and scale matrix, indicating how many degrees there are in each chord or scale type.

For example, you would see maj [3] in the Chords matrix or Major [7] in the Scales matrix.

Close

Closes the window and returns to the workspace or the window which opened it.

Help

Opens ChordWizard Help at this topic.
